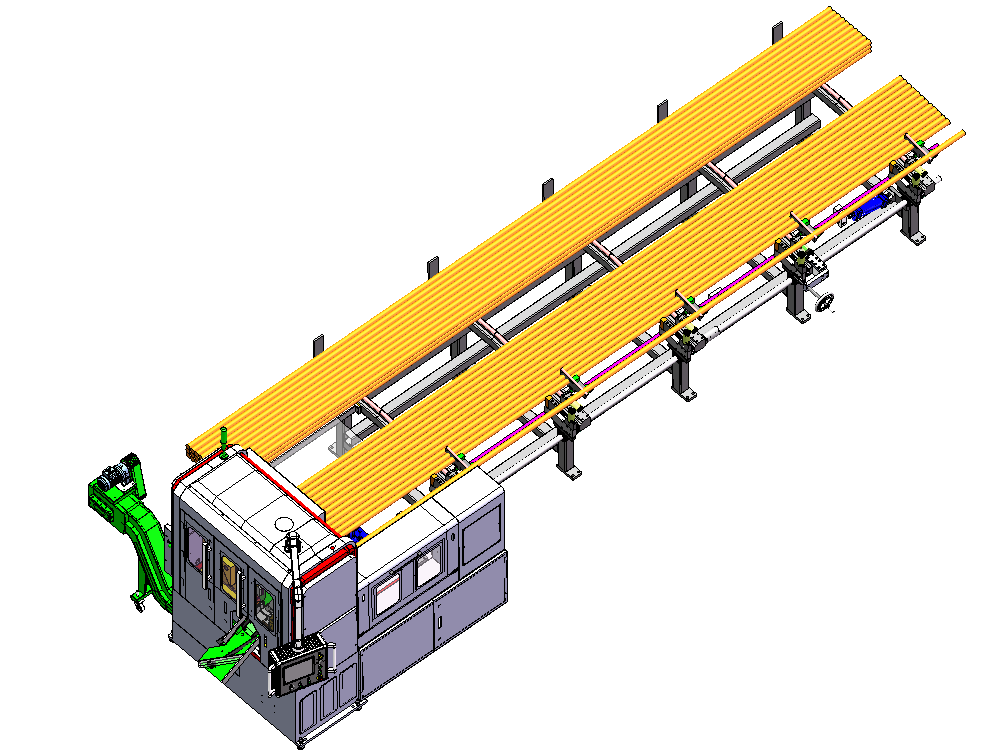

XMK100 Round Tenoner

XMK100 Round Tenoner

Equipment Features

● Whole machine design, advanced structure, and cutting-edge technology.
● 45° inclined feed mechanism, easy bevel cutting, and long tool life.
● Heavy-duty high-precision gearbox, stable bevel cutting, high precision, and long service life.
● Heavy-duty automatic feeding frame, strong load-bearing capacity, and stable and reliable feeding.

Contact Us

Contact
Contact

Product Details


 Tenoning Capacity ●/Oφ20-100mm ■/Square 20-70mm Hydraulic Station Power2.2kw
 Main Shaft Tenoning Cutter Diameterφ360mm(TCT tenoning cutter) Capacity90L
 Main Shaft Drive Motor11kw/4p Air Pressure0.4-0.7Mpa
 Cutting Feed Method45-degree inclined feed/servo drive + ball screw Power Supply380V 50Hz
 Tenoning Clamp MethodHydraulic clamping, horizontal and vertical, one set each Machine Dimensions8300×2400×2000mm
 Feeding MechanismServo drive + ball screw, feeding stroke 800mm, multiple feeding, Machine Weight5200kg
 Automatic Loading Rack6 meters, hydraulic flipping Auxiliary DeviceAutomatic lubrication, automatic chip removal, mist cooling, automatic material separation

FAQ

Q:

How long does it take to get a response after we send you an inquiry?

A:
We will reply to your inquiry within 12 hours on weekdays.
Q:

Are you a direct manufacturer or a trading company?

A:
We have an OEM manufacturing plant and a parts processing plant, as well as our own international trading department. We produce and sell our own products.
Q:

What products can you provide?

A:
We mainly produce high-speed metal circular saws, fully automatic servo chamfering machines, various non-standard sawing equipment, and automated sawing production lines.
Q:

In which application areas do your products primarily involve?

A:
Our products are widely used in many fields such as automotive parts, hot and cold forging, bearing manufacturing, pipe and profile manufacturing, engineering machinery, and hardware processing. They are especially suitable for high-precision and high-speed batch sawing needs of round steel, round pipe, profile, special steel, aluminum, copper, etc.
Q:

How are goods delivered to customers?

A:
We usually ship by sea because we are located in Suzhou, which is adjacent to Shanghai and Ningbo, making sea freight exports very convenient.
Q:

What is your company's production capacity?

A:
It can produce more than 200 circular saws and related equipment annually.
Q:

How does your company guarantee product quality?

A:
First, we conduct corresponding inspections after each process. For completed products, we perform full inspection according to customer requirements, technical solutions, and international standards. Second, we possess advanced and comprehensive processing and testing equipment in the industry: Japanese Makino horizontal machining centers, coordinate measuring machines, etc. The axial and radial runout accuracy of the main drive reducer output shaft is ≤0.008mm, with actual internal control within ≤0.005mm. These requirements ensure that we provide customers with high-precision and stable machine tools, while meeting their comprehensive requirements for the dimensions and accuracy of finished products.
Q:

Where do you mainly export your goods?

A:
Our products are mainly exported to many countries in Europe, America, and Southeast Asia.
Q:

Can you make customized products?

A:
Yes, we can develop and produce various non-standard cutting equipment and automated cutting production lines according to the technical requirements provided by customers.
